3D Scanning Parts: How INSVISION Systems Solve Industrial Quality Challenges

Eliminating Costly Rework in Automotive and Aerospace Inspection

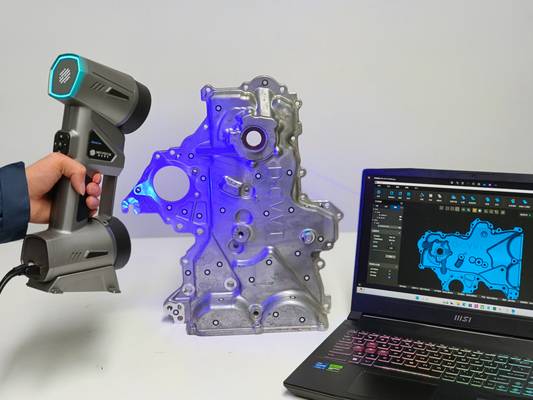

Catching dimensional deviations before they propagate downstream saves manufacturers millions in scrap and rework costs. INSVISION addresses this challenge with metrology-grade 3D scanning parts solutions designed for complex geometries. The AlphaScan Handheld and AlphaVista Blue Light scanners deliver 0.02mm-level precision, enabling manufacturers to validate parts against CAD models during initial production stages rather than after non-conformances accumulate.

Application-Specific Inspection Solutions

When scanning parts for first-article inspection, manufacturers leverage SMARPARA Q software to generate one-click visual reports with color-coded deviation maps. Key operational benefits include:

Operational Benefits Checklist

• □ Reduced scrap rates through early deviation detection at incoming inspection
• □ Accelerated FAI cycles with automated GD&T analysis supporting IGES, STP, and DXF formats
• □ Seamless workflow integration via USB 3.0 and Ethernet interfaces in temperatures from 0°C to 50°C

With IP54-rated durability and PTB certification, these systems ensure reliable measurement stability across automotive and aerospace production floors.

Automating Quality Control for High-Volume Manufacturing

For automotive suppliers and precision casting foundries managing thousands of parts daily, manual inspection creates bottlenecks that erode margins. The AlphaAutoScan-400 automated system from INSVISION transforms 3D scanning parts validation into a fully autonomous process enabling lights-out operation without sacrificing accuracy or traceability.

Manual vs. Automated Inspection Metrics

Paired with SMARPARA Q software, the system delivers PTB-certified inspection reports ensuring compliance for automotive IATF 16949 and aerospace AS9100 requirements. The software supports multiple alignment modes (RPS, datum-based, automatic) and built-in GD&T tools for complete dimensional analysis.

Automated System Capabilities

• □ Lights-out capability: Automated part loading, scanning, and reporting run unattended overnight
• □ Repeatable validation: Eliminates operator variability in high-volume production environments
• □ Seamless integration: Connects to existing MES/ERP systems via Ethernet and USB 3.0 interfaces

For foundries verifying casting stock allowances or automotive tier suppliers validating machined components, automated 3D scanning parts inspection shifts quality control from a cost center to a competitive advantage.

Replacing Manual Layouts with Digital Projection Guidance

Traditional manual marking methods introduce significant variability in complex assembly operations. The INSVISION Alpha-Projector eliminates this uncertainty by projecting CAD-driven green laser contours directly onto workpieces, delivering 0.25mm dynamic positioning accuracy for mission-critical applications.

Projection Guidance Applications

For shipbuilding, heavy machinery, and aerospace MRO operations, the system integrates with FiberSIM and CATIA CPD formats. Key capabilities include:

Digital Layout Capabilities Checklist

• □ Dynamic tracking that auto-corrects projection when parts move during assembly
• □ Elimination of marking errors, omissions, and out-of-tolerance placements
• □ Support for IGES, STP, DXF, and DWG file formats
• □ One-person operation with intuitive interface logic

By digitizing layout processes, manufacturers achieve consistent quality while reducing setup time by up to 70% compared to traditional scribing and templating methods.

Accelerating Reverse Engineering Without Sacrificing Accuracy

Legacy parts without CAD documentation create significant bottlenecks for mold repair shops and industrial equipment OEMs. the series combines the AlphaScan Handheld with SMARPARA Q’s reverse engineering pipeline, transforming physical components into production-ready CAD models.

The integrated workflow delivers measurable efficiency gains:

Reverse Engineering Workflow Steps

1. Rapid data acquisition: AlphaScan captures complex geometries at 0.02mm precision across diverse materials and surface conditions
2. Streamlined processing: SMARPARA Q guides users through point cloud cleanup, domain segmentation, and NURBS surface fitting
3. Direct CAD export: Native STP and IGES output ensures seamless integration with downstream manufacturing systems

By consolidating 3D scanning parts digitization into a single calibrated workflow, manufacturers reduce reverse engineering cycles by up to 60% compared to CMM-based methods without compromising metrology integrity.

Scaling Across Extreme Industrial Environments

Standard metrology equipment often fails in extreme conditions. the series addresses this with a modular ecosystem ensuring consistent 3D scanning parts performance from sub-zero chambers to particulate-heavy foundries.

Environmental Resilience Specifications

This interoperability allows defense contractors and energy sector operators to maintain measurement integrity across facilities. USB 3.0 and Ethernet interfaces ensure seamless integration with existing QA infrastructure, while PTB-certified software guarantees traceable results regardless of environmental variables.
