Stop Guessing, Start Measuring: Precision Metrology for Complex Parts On-Site
In automotive, aerospace, and mold manufacturing, inconsistent manual inspections trigger costly rework and delayed first-article approvals. Traditional measurement methods collapse under complex geometries and tight tolerances on the shop floor.

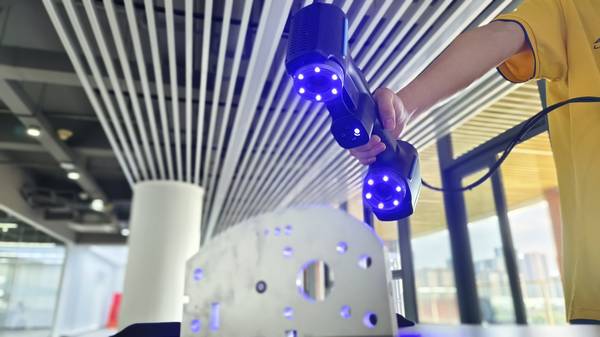

INSVISION addresses this with the AlphaScan handheld 3D scanner, delivering laboratory-grade 0.02mm accuracy directly in production environments. Engineered for harsh industrial conditions, it operates reliably from -5°C to 50°C with IP54 protection against dust and moisture.
Shop Floor Benefits of INSVISION Capabilities
| Capability | Shop Floor Benefit |
|---|---|
| PTB-Certified SMARPARA Q Software | Eliminates subjective manual measurements |
| One-Click Visual Inspection Reports | Accelerates first-article approval cycles |
| GD&T Tolerance Analysis | Ensures compliance with ISO/ASME standards |
| Multi-Format CAD Support (IGES/STP/DXF/DWG) | Seamless integration into existing workflows |
By replacing guesswork with certified precision, manufacturers reduce rework costs and transform quality inspection from a bottleneck into competitive advantage.
From Scrap to Spec: Automated Quality Control with Integrated Hardware and Software
The true power of INSVISION’s solution lies in seamless integration between the AlphaScan handheld 3D scanner and SMARPARA Q software. While hardware captures precise geometric data at 0.02mm accuracy, software transforms raw point clouds into actionable intelligence—automating GD&T tolerance analysis and generating PTB-certified inspection reports with one click.
In high-mix production environments, this synergy eliminates critical bottlenecks:
Key Workflow Improvements Checklist
- □ Automated GD&T analysis with color-coded deviation maps for instant visual verification
- □ One-click PTB-certified reports ensuring audit readiness without manual compilation
- □ Multiple alignment modes (automatic, datum-based, RPS) adapting to diverse part geometries
- □ Direct format compatibility with IGES, STP, DXF, and DWG for seamless CAD integration
Quality Workflow Comparison
| Quality Metric | Traditional Workflow | INSVISION Solution |
|---|---|---|
| Report Generation | Hours, manual entry | Minutes, automated |
| Human Error Risk | High (transcription) | Eliminated |
| Audit Preparation | Days of compilation | Immediate access |
| Scrap Rate Impact | Reactive correction | Proactive prevention |
Removing manual data transfer and calculation steps, manufacturers achieve consistent traceability while reducing scrap rates—delivering measurable ROI through faster audit cycles and improved first-pass yields.
Beyond Scanning: Dynamic Laser Projection for Error-Proof Assembly
While a 3d scanner handheld device excels at capturing as-built data, INSVISION extends digital workflow into active production guidance through the Alpha-Projector. This system projects CAD-driven green laser outlines directly onto workpieces, replacing error-prone manual scribing with precise digital templates. The result transforms complex assembly operations in shipbuilding and heavy machinery sectors.
The Alpha-Projector leverages high-precision binocular vision positioning to deliver 0.25mm accuracy, ensuring operators place fasteners, welds, and composite layers exactly where design specifies. Dynamic tracking automatically corrects projection alignment when workpieces shift, maintaining continuous guidance without interruption.
Assembly Guidance Implementation Steps
- Replace manual measurement and marking with real-time laser guidance for drilling and fastener layout
- Transition from template-based positioning to CAD-driven contour projection for composite layup
- Substitute paper drawings and chalk with digital outline verification for welding stud placement
Eliminating interpretation errors and reducing setup time by up to 40%, manufacturers achieve consistent repeatability across high-mix production environments—turning complex assembly into guided, error-proof process.
Scaling Flexibility: Modular Systems for Evolving Production Needs
Manufacturing requirements rarely remain static. the series addresses this with a modular ecosystem that grows alongside production demands. Whether starting with a 3d scanner handheld solution or deploying fully automated inspection cells, underlying architecture remains consistent.
Modular System Evolution Path
| Stage | Hardware | Capability |
|---|---|---|
| Entry | AlphaScan Handheld | Portable metrology, 0.02mm accuracy |
| Intermediate | AlphaVista Blue Light + X-Track | Optical tracking, expanded volume |
| Advanced | AlphaAutoScan-400 | Automated cell, high-throughput inspection |
The critical advantage lies in software continuity. SMARPARA Q serves as unified platform across all configurations, ensuring:
- Consistent data formats (IGES, STP, DXF, DWG)
- Single-source PTB-certified inspection reports
- Zero retraining costs when scaling hardware
- Seamless data handoff between manual and automated stages
For manufacturers navigating uncertain production volumes or mixed-model lines, this approach eliminates traditional system replacement penalties. Investment in initial scanning hardware becomes foundation rather than sunk cost, with each upgrade layering capability without fragmenting workflows or compromising data integrity.
Built for the Factory Floor: Rugged Design Meets Industrial Usability
Industrial environments demand equipment that withstands harsh conditions without compromising performance. The the series handheld 3D scanner is engineered specifically for these realities, enabling quality engineers in automotive Tier 1 facilities and energy equipment plants to capture precise measurements directly on the shop floor—no climate-controlled lab required.
Industrial Specifications
| Specification | Value |
|---|---|
| Laser Wavelength | 520nm |
| Laser Class | 3R (less than 5mW) |
| Protection Rating | IP54 |
| Operating Temperature | -5°C to 50°C |
| Weight | 9.5kg |
| Dimensions | 580 x 185 x 170mm |
| Connectivity | USB 3.0, Ethernet |
At 9.5kg with ergonomic dimensions, the scanner balances portability with stability. USB 3.0 and Ethernet interfaces ensure seamless connectivity to existing manufacturing IT infrastructure. The 520nm Class 3R laser (less than 5mW output) ensures operator safety during extended scanning sessions without specialized protective equipment, while IP54-rated components resist dust ingress and water spray in machining centers and foundries.
