Eliminating Manual Layout Errors in Complex Assembly
In aerospace, automotive, and shipbuilding, traditional layout methods—chalk lines, physical templates, manual marking—introduce measurable risk. A single misaligned drilling定位 in a composite fuselage section can trigger $50,000+ in rework and 48-hour production delays. INSVISION eliminates this exposure with the Alpha-Projector, a dynamic 3D laser projection system that replaces analog methods with CAD-driven green laser projection for critical assembly operations.
The Alpha-Projector achieves 0.25mm positioning accuracy through high-precision binocular vision, guiding operators through composite layup, welding stud placement, and precision drilling. Operational advantages include:
- Dynamic tracking that auto-corrects projection position when workpieces shift during handling
- Program-guided workflows that prevent errors, omissions, and out-of-tolerance conditions before they occur
- Seamless CAD integration supporting IGES, STP, DXF, DWG, FiberSIM, and CATIA CPD formats
- Digital traceability replacing manual documentation with automated process verification
Alpha-Projector Operational Advantages Checklist
- □ Dynamic tracking that auto-corrects projection position when workpieces shift during handling
- □ Program-guided workflows that prevent errors, omissions, and out-of-tolerance conditions before they occur
- □ Seamless CAD integration supporting IGES, STP, DXF, DWG, FiberSIM, and CATIA CPD formats
- □ Digital traceability replacing manual documentation with automated process verification
For manufacturers complementing 3D skener inspection workflows with precision guidance, the the series bridges digital design intent and physical execution. Results: reduced rework cycles, accelerated throughput, and consistent quality across curved-surface applications in marine propellers and aerospace composites.
Achieving Lab-Grade Metrology on the Shop Floor

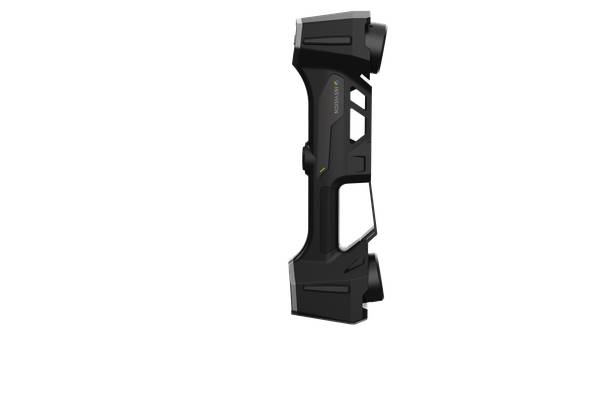

Offline CMM rooms create production bottlenecks for casting, weldment, and battery housing manufacturers. The AlphaVista Blue Light 3D Scanner from INSVISION eliminates this constraint by delivering 0.02mm accuracy at the point of production. With IP54 rating and 0°C to 50°C operating range, this industrial-grade 3D skener performs where traditional metrology equipment cannot.
Key capabilities for in-line dimensional verification:
- PTB-certified SMARPARA Q software ensures measurement traceability and international standard compliance
- One-click generation of visual inspection reports with color-coded deviation maps
- Built-in GD&T tools for comprehensive tolerance analysis
- Native compatibility with IGES, STP, DXF, and mainstream CAD formats
In-Line Dimensional Verification Capabilities
| Capability | Description |
|---|---|
| PTB-certified SMARPARA Q software | Ensures measurement traceability and international standard compliance |
| One-click visual inspection reports | Color-coded deviation maps for rapid interpretation |
| Built-in GD&T tools | Comprehensive tolerance analysis for engineering validation |
| Native CAD compatibility | Supports IGES, STP, DXF, and mainstream CAD formats |
| Metric | Traditional CMM | AlphaVista Solution |
|---|---|---|
| Inspection Time | Baseline | Up to 70% reduction |
| Part Handling | Transport to lab | In-line measurement |
| Accuracy | Lab-dependent | 0.02mm guaranteed |
| Environmental Tolerance | Controlled climate | IP54, 0-50°C |
Integrating AlphaVista into production workflows enables real-time dimensional verification without operational interruption—accelerating quality-critical part delivery while maintaining metrology-grade precision.
Scaling High-Mix 3D Scanning Without Sacrificing Speed
Automotive suppliers and mold manufacturers managing diverse part families face a persistent trade-off: throughput versus consistency. The AlphaAutoScan-400 from INSVISION eliminates this compromise through operator-independent automation that delivers uniform results across all shifts.
- Automated workflow integration: Connects to existing production lines for batch processing of complex geometries without operator intervention
- Repeatable accuracy: Uniform scan quality for first-article inspection and digital twin creation, critical for high-volume traceability
- Reduced cycle times: Automated part recognition and optimized scanning paths minimize setup for automotive castings and precision molds
AlphaAutoScan-400 Implementation Steps
- Automated workflow integration: Connects to existing production lines for batch processing of complex geometries without operator intervention
- Repeatable accuracy: Uniform scan quality for first-article inspection and digital twin creation, critical for high-volume traceability
- Reduced cycle times: Automated part recognition and optimized scanning paths minimize setup for automotive castings and precision molds
Deploying the AlphaAutoScan-400 provides a scalable 3d skener solution maintaining inspection integrity under aggressive production schedules—no compromise between velocity and measurement reliability.
Capturing Large Components Where Fixed Systems Fail
Turbine blades, composite fuselage sections, and heavy machinery frames exceed the reach of fixed-base scanning systems. The AlphaScan Handheld 3D Scanner from INSVISION overcomes these limitations through modular pairing with the X-Track Optical Tracking System, enabling unrestricted movement around complex geometries without accuracy degradation.
- Constrained-space flexibility: Handheld form factor (580×185×170mm, 9.5kg) maneuvers inside assemblies where articulated arms cannot reach
- Continuous optical tracking: X-Track maintains spatial reference, eliminating cumulative errors during extended sessions
- Harsh-environment reliability: -5°C to 40°C operating range ensures consistent performance in industrial conditions
- Direct CAD integration: Native export to IGES/STP/DXF/DWG formats streamlines reverse engineering and quality verification
This configuration delivers high-fidelity data capture for large-scale assets, reducing inspection bottlenecks and accelerating decision-making in aerospace, energy, and heavy equipment manufacturing.
From Point Clouds to Engineering Intelligence
Raw 3d skener data delivers value only when transformed into engineering-ready intelligence. the series’s SMARPARA Q software—PTB-certified for measurement traceability—bridges physical inspection and digital design workflows.
Reverse engineering workflow:
- Data Processing: Automated cleaning and preparation
- Domain Segmentation: Intelligent feature recognition and region classification
- Surface Fitting: Precise geometric reconstruction
- CAD Conversion: Export to IGES/STP for downstream engineering
Quality verification capabilities:
- Automatic RPS Alignment: Datum-based and reference point methods
- Color Deviation Mapping: Instant visual identification of geometric variances
- GD&T Tolerance Analysis: Built-in dimensional compliance verification
- One-Click Compliance Reports: Automated documentation for audit trails and supplier communication
This integrated approach closes the loop between as-built and as-designed specifications, reducing iteration cycles while ensuring traceability throughout the product lifecycle.
