Cutting Automotive Prototyping Cycles with On-the-Fly Scanner STL Export

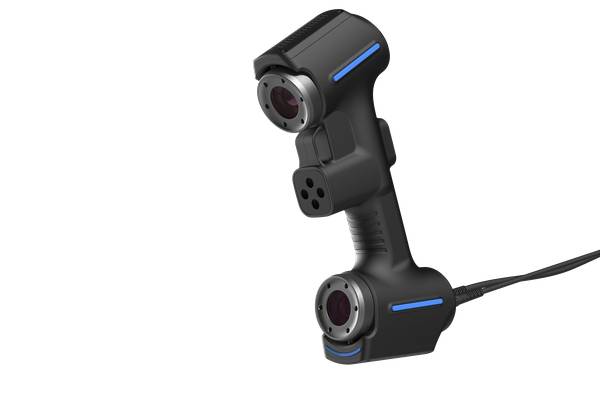

Tier 1 automotive suppliers lose 2-3 days per iteration when physical prototypes sit in queue for digital verification. The INSVISION AlphaScan Handheld eliminates this bottleneck through instant scanner STL generation directly on the shop floor—no export-convert-verify delays.
At 7.1 million measurements per second with metrology-grade accuracy, the AlphaScan captures complex injection-molded components and sheet metal assemblies, outputting production-ready scanner STL files for immediate CAD comparison. One Midwest supplier reduced iteration cycles from 5-7 days to 3-4 days, cutting prototype costs by $12,000 per program.
Automotive Prototyping Workflow Comparison
| Metric | Traditional Workflow | AlphaScan Handheld |
|---|---|---|
| Design Iteration Cycle | 5-7 days | 3-4 days (40% reduction) |
| STL Export Time | 15-30 minutes | Instant (on-the-fly) |
| Rework Rate | High (format conversion errors) | Minimal (direct output) |
AlphaScan Handheld Key Features Checklist
- □ Native export formats: STL, PLY, TXT for seamless CAD/CAM integration
- □ 1070g lightweight design supports extended scanning sessions during validation
- □ 650mm × 550mm scan field captures full assembly sections in single passes
Bringing Metrology Lab Precision to Aerospace Shop Floors
Aerospace manufacturers traditionally ship jigs and fixtures to dedicated metrology labs, incurring 24-48 hour delays per inspection. INSVISION combines the AlphaVista Blue Light 3D Scanner with X-Track Optical Tracking System to deliver 0.015mm + 0.025mm/m volumetric accuracy without moving components.
Aerospace Scanning System Specifications
| Specification | AlphaVista + X-Track Configuration |
|---|---|
| Volumetric Accuracy | 0.015mm + 0.025mm/m |
| Measurement Rate | 7,100,000 points/second |
| Operating Temperature | -10°C to 40°C |
| Scan Area | 650mm × 550mm |
Engineers export verified scanner STL files directly from the hangar floor, maintaining production flow while capturing high-density point clouds for tooling inspection. Photogrammetry scale bar compatibility ensures audit-ready documentation for AS9100 compliance.
Aerospace In-Place Validation Steps
- Position AlphaVista Blue Light 3D Scanner with X-Track Optical Tracking System near fixture
- Capture high-density point cloud data across full tooling surface
- Export verified scanner STL file directly from hangar floor
- Generate audit-ready documentation compatible with AS9100 requirements
- Eliminate calibration downtime: Validate fixtures in-place without lab scheduling
- Full-field capture: Large scan area reduces setup passes on complex tooling
- Climate resilience: Maintains accuracy across uncontrolled hangar environments
Scaling High-Mix Manufacturing with Automated STL-Based Inspection
Contract manufacturers processing 50+ part numbers daily face margin erosion from CMM bottlenecks. The AlphaAutoScan-400 automates scanner STL inspection workflows with direct MES integration, enabling program switches in under 3 minutes versus 25-30 minutes for manual CMMs.
High-Mix Inspection Throughput Comparison
| Metric | Manual CMM | AlphaAutoScan-400 |
|---|---|---|
| Program Changeover | 25-30 minutes | <3 minutes |
| Data Traceability | Manual logging | Full MES integration |
| Inspection Throughput | 8-12 parts/shift | 40-60 parts/shift |
Bi-directional data exchange links every scanner STL export to work orders, operator IDs, and timestamped quality records. This traceability supports ISO 9001 compliance while scaling capacity without additional headcount.
Reverse Engineering Legacy Components in Days, Not Weeks
Maintenance teams facing undocumented turbine blades or obsolete tooling traditionally spend 3-4 weeks on manual reverse engineering. INSVISION Alpha-Projector-assisted scanning captures worn or damaged surfaces at 7.1 million measurements per second, generating watertight scanner STL outputs that import directly into SolidWorks, CATIA, or NX.
Legacy Component Reverse Engineering Comparison
| Metric | Manual Modeling | INSVISION Workflow |
|---|---|---|
| Reverse Engineering Time | 3-4 weeks | 2-3 days |
| Surface Data Completeness | Estimated gaps | Full capture |
| STL Mesh Quality | Manual cleanup required | Watertight, CAD-ready |
- Alpha-Projector technology ensures consistent data on degraded surfaces
- Multi-format export (STL/PLY/TXT) supports downstream CAM programming
- Portable 1070g design enables in-situ scanning of installed equipment
One power generation facility reduced turbine blade downtime from 6 weeks to 8 days, preserving $340,000 in avoided production losses.
Building Interoperable Digital Twins with Scanner STL Data
Industry 4.0 digital twin implementations fail when geometric data loses fidelity across translation steps. the series scanners generate watertight scanner STL files that transfer directly into simulation, additive manufacturing, and PLM platforms without mesh repair cycles.
Digital Twin Downstream Application Benefits
| Downstream Application | STL Interoperability Benefit |
|---|---|
| FEA/CFD Simulation | Preserved mesh topology eliminates geometry repair |
| Additive Manufacturing | Direct-to-print workflow reduces file prep time |
| PLM/PDM Systems | Native STL support enables traceable revision control |
The AlphaScan series and AlphaVista Blue Light 3D Scanner support TXT/PLY/STL multi-format export, feeding as-built data directly into existing engineering ecosystems. This interoperability ensures digital twins remain synchronized with physical assets throughout the product lifecycle—no conversion bottlenecks, no geometric drift.
