Scan to 3D: How INSVISION Precision Systems Solve Industrial Measurement Bottlenecks

Eliminating Manual Measurement Errors in High-Mix Production

In high-mix, low-volume environments such as aerospace and automotive manufacturing, traditional measurement tools introduce significant bottlenecks. Complex castings, weldments, and composite parts feature intricate geometries that challenge conventional inspection, leading to rework and costly scrap.

INSVISION addresses these challenges with its AlphaScan Handheld and AlphaVista Blue Light scanners, enabling manufacturers to implement precise scan to 3D workflows. Both systems deliver PTB-certified accuracy, ensuring measurement reliability for critical quality applications.

Performance Comparison: Traditional vs. INSVISION Solutions

INSVISION Hardware and Software Components

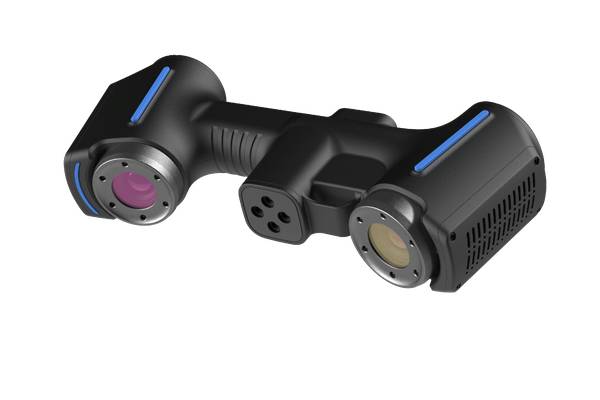

• □ AlphaScan Handheld: Portable 9.5 kg design with 520nm laser, ideal for large weldments and on-site inspections across -5°C to 40°C environments
• □ AlphaVista Blue Light: High-speed capture for precision composite parts and aerospace components
• □ SMARPARA Q Software: Automated GD&T analysis, color deviation mapping, and one-click inspection report generation

By replacing error-prone manual measurement with certified digital capture, manufacturers achieve consistent first-article inspection quality while accelerating throughput.

Automating First-Article Inspection Without Rework

For precision mold and battery housing manufacturers, first-article inspection represents a critical bottleneck where delays directly impact production ramp-up. the series integrates automated metrology systems with SMARPARA Q inspection software, enabling a streamlined scan to 3D workflow that eliminates manual data transcription errors.

Key Features of Automated FAI Workflow

• □ One-click GD&T analysis: Built-in geometric dimensioning tools automatically extract tolerances from CAD models, supporting RPS and datum-based referencing
• □ AS9102-compliant reporting: Generates aerospace-standard FAI documentation with color-coded deviation maps, reducing report preparation from hours to minutes
• □ 0.02mm accuracy class: Industrial-grade precision ensures reliable measurements for tight-tolerance battery housings and complex mold cavities

FAI Process Efficiency Gains

Removing subjective interpretation from inspection accelerates customer approval while maintaining full traceability for quality audits.

Guiding Assembly with Dynamic Laser Projection

In shipbuilding, energy equipment, and large-scale composite manufacturing, traditional assembly guidance relies on physical templates and manual measurements that introduce variability. the series’s Alpha-Projector eliminates these practices by projecting CAD-driven laser contours directly onto curved surfaces with 0.25mm positioning accuracy.

The system’s dynamic tracking capability automatically corrects projection position when workpieces shift, ensuring continuous alignment without operator intervention:

Alpha-Projector Applications in Manufacturing

1. Composite layup: Precise ply boundary projection for fiber placement in aerospace and wind turbine blade production
2. Drilling and fastener positioning: Eliminates template fabrication while ensuring hole pattern accuracy
3. Welding and stud placement: Projects weld lines and stud locations directly onto assemblies
4. Tooling and fixture setup: Replaces manual marking with digital positioning guides

Compatible with FiberSIM, CATIA CPD, and standard CAD formats, the Alpha-Projector bridges scan to 3D workflows and production execution. Operators follow projected green laser outlines, eliminating interpretation errors and reducing rework.

Scaling 3D Digitization Across Global Supply Chains

For OEMs managing multi-tier supplier networks, maintaining measurement consistency across facilities is critical. the series addresses this with a modular ecosystem designed for standardized scan to 3D workflows from prototype validation through mass production.

Global Supply Chain Digitization Capabilities

• □ X-Track Optical Tracking: Enables large-volume scanning without line-of-sight limitations, ideal for complex assemblies
• □ Ruggedized Scanners: IP54-rated hardware operates reliably from -5°C to 50°C, ensuring performance in diverse shop floor conditions
• □ Open Data Formats: Native support for STEP, IGES, DXF, and DWG eliminates proprietary lock-in, facilitating seamless data exchange across CAD platforms

Traceability Across Production Phases

This interoperability allows Tier 2 and Tier 3 suppliers to deliver inspection-ready data that integrates directly into OEM quality systems, reducing rework cycles and ensuring dimensional traceability throughout the manufacturing value chain.

Future-Proofing Quality Infrastructure

For manufacturers navigating Industry 4.0 transformation, SMARPARA Q serves as a strategic foundation for digital twin initiatives and AI-driven quality control. PTB certification ensures measurement accuracy that regulated industries demand, providing audit-ready traceability for aerospace, medical device, and automotive suppliers.

Digital Quality Infrastructure Features

• □ Multi-source alignment capabilities unify data from diverse scanning systems into a coherent digital thread across facilities
• □ Complete reverse engineering pipeline transforms raw point clouds through domain segmentation, surface fitting, and CAD conversion, enabling legacy part digitization
• □ Open format support ensures seamless integration with PLM systems and future AI/ML analytics platforms

As facilities transition toward smart factory architectures, INSVISION’s commitment to open, certified scan to 3D workflows positions manufacturers to leverage dimensional data as a foundational asset feeding predictive models, automated process control, and enterprise-wide digital infrastructure.
