Eliminating Costly Rework in Automotive & Aerospace Manufacturing
In high-stakes industries like automotive and aerospace, dimensional deviations discovered late in production trigger expensive scrap, line stoppages, and supply chain delays. INSVISION addresses this with 3D scannen solutions engineered for early-stage quality control.
- AlphaScan Handheld 3D Scanner: At 9.5kg with 0.02mm accuracy, this portable unit inspects battery housings and large assemblies directly on the production floor. Operating range: -5°C to 40°C.

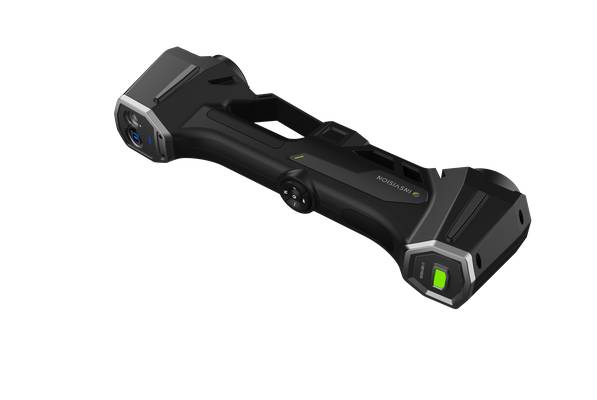

- AlphaVista Blue Light 3D Scanner: IP54-rated with 0.02mm precision, it captures complex geometries including carbon fiber molds and aerospace components. Dual interface: USB 3.0 and Ethernet.
Application Impact Summary
| Application | Deviation Detection | ROI Impact |
|---|---|---|
| Battery Housings | Early-stage dimensional checks | Reduced scrap rates |
| Carbon Fiber Molds | Precision surface validation | Minimized rework cycles |
| Global Supply Chain Parts | First-time-right verification | Streamlined assembly |
Integrating these scanners into quality workflows enables first-time-right assembly across distributed supply chains, converting inspection from bottleneck to competitive advantage.
Automating Quality Control for High-Mix, Low-Volume Production
Manufacturers handling diverse part geometries in limited batches face CMM bottlenecks that stall production. The AlphaAutoScan-400 from INSVISION enables fully automated, lights-out inspection of precision castings and welded structures.
Paired with SMARPARA Q software, the system delivers PTB-certified GD&T reports in minutes, eliminating manual measurement variability while ensuring traceability. Native integration with MES and QMS workflows supports German and U.S. manufacturing operations.
Automated Inspection Capabilities Checklist
- □ Automated workflow: CAD-driven inspection plans execute without operator intervention, supporting overnight or unattended shifts
- □ PTB-certified accuracy: GD&T analysis meets international standards for automotive, aerospace, and heavy machinery
- □ Native connectivity: Direct support for IGES, STP, DXF, and DWG formats ensures enterprise data exchange
- □ High-mix flexibility: Rapid changeover between part families sustains low-volume production efficiency
Deploying 3D scannen technology in automated configuration reduces inspection labor costs while increasing throughput, transforming quality control from constraint to value driver.
Replacing Error-Prone Manual Marking with Dynamic Laser Projection
Shipbuilding and composite layup operations suffer from manual marking variability on curved surfaces. Workers struggle to transfer complex CAD geometries onto hull sections or molds, causing misalignment during drilling and assembly. INSVISION solves this with the Alpha-Projector, a dynamic 3D laser projection system that replaces manual scribing with CAD-driven green laser contours.
The system achieves 0.25mm positioning accuracy through binocular vision, projecting ply boundaries, drill locations, and assembly guides directly onto workpieces. Real-time dynamic tracking compensates for part movement, maintaining continuous alignment without repositioning delays.
Manual vs. Projected Marking Comparison
| Metric | Manual Marking | Alpha-Projector |
|---|---|---|
| Marking accuracy | ±2-5mm (variable) | ±0.25mm (consistent) |
| Drill/assembly time | Baseline | 40% faster |
| Error rate | High (human-dependent) | Eliminated (programmed guidance) |
| Traceability | Manual records | CAD-driven audit trail |
The Alpha-Projector ensures AS9100 and IATF 16949 compliance through fully traceable, digitally documented processes. Integration with FiberSIM and CATIA CPD formats enables seamless adoption in aerospace composite layup and marine fabrication.
Enabling Rapid Reverse Engineering Without Compromising Accuracy
Heavy machinery and energy equipment operators face urgent legacy part digitization challenges. Critical assets often lack original CAD documentation, making replacement procurement costly and slow. INSVISION combines AlphaScan Handheld 3D Scanner’s 0.02mm precision with SMARPARA Q’s intelligent surface reconstruction to solve this.
Unlike CMMs requiring days for complex geometry capture, this integrated solution delivers production-ready CAD models in hours. The reverse engineering workflow includes:
Reverse Engineering Workflow Steps
- Complete pipeline: Data processing → domain division → surface fitting → CAD conversion
- Multi-format export: IGES, STP, DXF, and DWG compatibility for downstream integration
- Auxiliary geometry: Automated point, circle, plane, and cylinder generation preserves design intent
- PTB-certified accuracy: Measurement reliability for turbine blades, gearbox housings, and pump impellers
For facilities requiring professional 3D scannen capabilities, this approach generates manufacturing-ready models without sacrificing dimensional fidelity essential for production-quality replacements.
Scaling 3D Scannen Across the Factory Floor with Modular Integration
Modern manufacturing demands quality inspection that adapts to varying volumes and part complexities. the series delivers a modular ecosystem scaling from handheld spot checks to fully automated inspection cells.
Modular Deployment Options
| Deployment Mode | System Configuration | Ideal Application |
|---|---|---|
| Portable Inspection | AlphaVista Blue Light 3D Scanner + X-Track Optical Tracking System | Large parts, in-situ measurements |
| Automated Cell | AlphaAutoScan-400 + SMARPARA Q | High-volume, lights-out QC |
The X-Track Optical Tracking System extends AlphaVista’s 0.02mm precision across large measurement volumes, eliminating fixed CMM infrastructure. This flexibility proves critical for aerospace and heavy machinery applications where parts cannot move to dedicated metrology labs.
- Seamless data continuity: All systems output standardized IGES/STP/DXF formats, feeding directly into CATIA and FiberSIM without translation errors
- Unified software backbone: SMARPARA Q delivers PTB-certified GD&T analysis across handheld and automated platforms, maintaining pipeline consistency
- Investment protection: Start with portable 3D scannen and expand to automation as production scales—shared software and calibration standards reduce training overhead
For manufacturers pursuing Industry 4.0, this interoperability integrates inspection data with MES/QMS infrastructure, enabling closed-loop quality control across global operations.
