Cutting Automotive Prototyping Costs with Handheld 3D Scanning

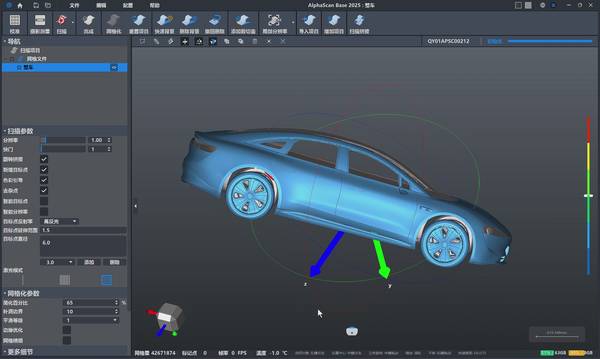

Manual measurement errors in traditional prototyping workflows propagate through production, triggering expensive tooling revisions. The AlphaScan Handheld 3D Scanner from INSVISION enables engineers to scan 3D surfaces of clay and foam models directly on the shop floor with sub-millimeter accuracy, catching deviations before tooling commitment.
Key Benefits of AlphaScan in Automotive Prototyping
- □ Rapid capture: Complex freeform surfaces digitized in minutes rather than hours
- □ Shop-floor ready: Portable design eliminates controlled environment requirements
- □ Early validation: Compare as-built prototypes against CAD before cutting production tools
Impact Metrics: Traditional vs. AlphaScan Workflow
| Metric | Traditional Workflow | With AlphaScan |
|---|---|---|
| Design Iteration Cycles | Baseline | Reduced by 40% |
| Tooling Rework Rate | 12-15% | Under 3% |
| Prototype Digitization | 2-3 days | Under 4 hours |
Automotive manufacturers validating prototype geometry early avoid tooling modifications exceeding $50,000 per iteration. Capturing real-world surfaces against design intent ensures production tools are cut correctly the first time.
Meeting Micron-Level Aerospace Tolerances with Blue Light 3D Scanning

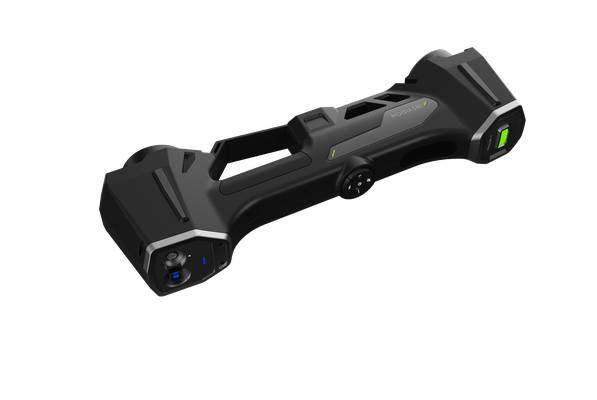

Aerospace manufacturing demands tolerances measured in microns. The INSVISION AlphaVista Blue Light 3D Scanner paired with the X-Track Optical Tracking System delivers high-stakes quality control for turbine blades and composite structures. This integrated system enables operators to scan 3D geometries with exceptional repeatability, even in vibration-prone production environments.
AlphaVista Aerospace Applications and Solutions
| Application | Verification Challenge | AlphaVista Solution |
|---|---|---|
| Turbine Blades | Complex airfoil geometry, tight tolerances | Micron-level accuracy with real-time deviation mapping |
| Composite Structures | Surface porosity, ply alignment verification | Non-contact scanning preserves surface integrity |
The AlphaVista system delivers traceable, high-density point cloud data that streamlines AS9100 quality management compliance, reducing inspection cycle times while maintaining documentation rigor aerospace OEMs require.
Enabling 100% Inline Inspection for High-Volume Manufacturing
Spot-checking thousands of daily cast or machined parts leaves quality gaps. The AlphaAutoScan-400 Automated 3D Scanning System from INSVISION enables 100% inline inspection, integrating directly into production lines to scan 3D surface data without throughput reduction.
AlphaAutoScan-400 Implementation Steps
- Seamless integration: Mounts over conveyors or robotic cells, triggering automatic scans at programmed intervals
- Real-time defect detection: Identifies dimensional deviations, surface porosity, and machining errors before parts exit the line
- Labor reallocation: Eliminates manual inspection stations, redirecting skilled workers to higher-value tasks
- Complete traceability: Captures digital records per part, supporting quality audits and customer documentation
Catching non-conforming parts at the source prevents costly customer returns and protects brand reputation. The AlphaAutoScan-400 transforms quality control from bottleneck to competitive advantage through reduced scrap, fewer warranty claims, and streamlined compliance reporting.
Reducing Downtime with Rapid Reverse Engineering
Critical heavy machinery failures without replacement parts or original CAD documentation trigger extended unplanned downtime. INSVISION’s portable scan 3D solutions digitize worn or obsolete components for rapid reverse engineering.
Traditional vs. Scan-Based Reverse Engineering
| Traditional Method | the series Scan-Based Workflow |
|---|---|
| Manual measurements with hand tools | Full-surface digital capture |
| Extended equipment downtime | Rapid part reproduction |
| Dependence on obsolete inventory | On-demand manufacturing capability |
Industrial facilities integrating the series scanning technology reduce replacement lead times from weeks to days while maintaining precise fit and function specifications.
Building Accurate Digital Twins with Projected Structured Light
Digital twin accuracy depends on underlying geometry data quality. the series’s Alpha-Projector projected structured light system maintains surface capture fidelity during dynamic scanning operations. Unlike static setups, it adapts projection patterns in real time, ensuring precise capture of reflective or low-contrast surfaces.
Digital Twin Enhancement Features
- □ Simulation-ready datasets: High-fidelity surface meshes reduce preprocessing time for CAE and CFD simulations
- □ Predictive maintenance integration: Accurate as-built documentation enables precise wear analysis and failure modeling
- □ Virtual commissioning support: True-to-reality digital replicas streamline PLC testing and process validation
For energy and heavy industrial sectors, where asset downtime carries severe financial consequences, the ability to scan 3D environments with consistent accuracy produces reliable virtual models. Maintenance teams base critical decisions on digital twins reflecting actual field conditions rather than idealized CAD assumptions, extending asset lifecycles and reducing unplanned outages.
